EMVA 1288 Imaging Performance
Measurements are taken based on guidelines in the EMVA 1288 standard; the full definition can be found at EMVA.org. Camera settings are: maximum bit depth, 16-bit pixel format, and ISP disabled. The center wavelength is 525 nm unless otherwise noted. Results are captured at room temperature (20°C).
| Blackfly S BFS-PGE-23S6M | Blackfly S BFS-PGE-23S6C | |
|---|---|---|
| Resolution | 1920x1200 | 1920x1200 |
| Sensor | Sony IMX249, CMOS, 1/1.2 | Sony IMX249, CMOS, 1/1.2 |
| Pixel Size (µm) | 5.86 | 5.86 |
| Firmware Version | 2402.0.207.0 | 2402.0.207.0 |
| ADC Bit Depth | 12 | 12 |
| Quantum Efficiency Mono (% at 525 nm) | 70.81 | N/A |
| Quantum Efficiency Blue (% at 470 nm) | N/A | 57.62 |
| Quantum Efficiency Green (% at 525 nm) | N/A | 64.67 |
| Quantum Efficiency Red (% at 630 nm) | N/A | 40.35 |
| Temporal Dark Noise (Read Noise) (e-) | 6.83 | 6.99 |
| Temporal Dark Noise (Read Noise) (DN) | 13.50 | 13.81 |
| Signal to Noise Ratio Maximum (dB) | 45.40 | 45.43 |
| Signal to Noise Ratio Maximum (Bits) | 7.54 | 7.55 |
| Absolute Sensitivity Threshold (γ) | 10.97 | 12.19 |
| Absolute Sensitivity Threshold (e-) | 7.77 | 7.92 |
| Saturation Capacity (Well Depth) (e-) | 34686 | 34897 |
| Saturation Capacity (Well Depth) (γ) | 48985 | 53730 |
| Dynamic Range (dB) | 73.00 | 72.88 |
| Dynamic Range (Bits) | 12.12 | 12.11 |
| Gain (e-/ADU) | 0.54 | 0.54 |

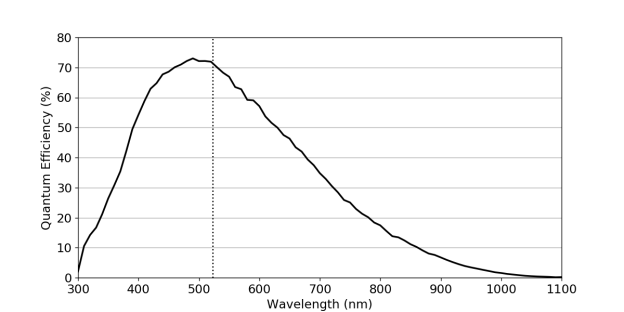

Blackfly S BFS-PGE-23S6M Spectral Response Curve

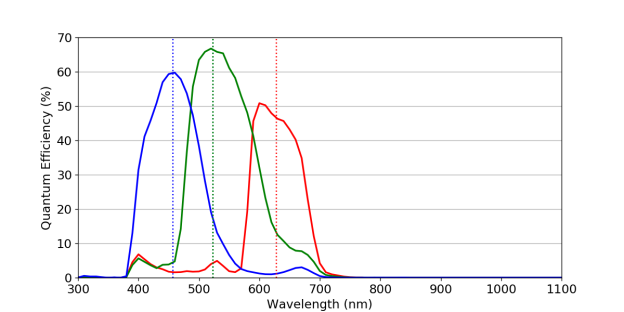

Blackfly S BFS-PGE-23S6C Spectral Response Curve
