EMVA 1288 Imaging Performance
Measurements are taken based on guidelines in the EMVA 1288 standard; the full definition can be found at EMVA.org. Camera settings are: maximum bit depth, 16-bit pixel format, and ISP disabled. The center wavelength is 525 nm unless otherwise noted. Results are captured at room temperature (20°C).
| Blackfly S BFS-PGE-50S4M | Blackfly S BFS-PGE-50S4C | |
|---|---|---|
| Resolution | 2448x2048 | 2448x2048 |
| Sensor | Sony IMX547, CMOS, 1/1.8 | Sony IMX547, CMOS, 1/1.8 |
| Pixel Size (µm) | 2.74 | 2.74 |
| Firmware Version | 2106.0.146.0 | 2106.0.146.0 |
| ADC Bit Depth | 12 | 12 |
| Quantum Efficiency Mono (% at 525 nm) | 67.99 | N/A |
| Quantum Efficiency Blue (% at 470 nm) | N/A | 46.15 |
| Quantum Efficiency Green (% at 525 nm) | N/A | 52.87 |
| Quantum Efficiency Red (% at 630 nm) | N/A | 32.90 |
| Temporal Dark Noise (Read Noise) (e-) | 2.49 | 2.54 |
| Temporal Dark Noise (Read Noise) (DN) | 16.18 | 16.34 |
| Signal to Noise Ratio Maximum (dB) | 39.89 | 39.89 |
| Signal to Noise Ratio Maximum (Bits) | 6.63 | 6.63 |
| Absolute Sensitivity Threshold (γ) | 4.40 | 5.75 |
| Absolute Sensitivity Threshold (e-) | 2.99 | 3.04 |
| Saturation Capacity (Well Depth) (e-) | 9748 | 9749 |
| Saturation Capacity (Well Depth) (γ) | 14337 | 18466 |
| Dynamic Range (dB) | 70.26 | 70.14 |
| Dynamic Range (Bits) | 11.67 | 11.65 |
| Gain (e-/ADU) | 0.15 | 0.16 |

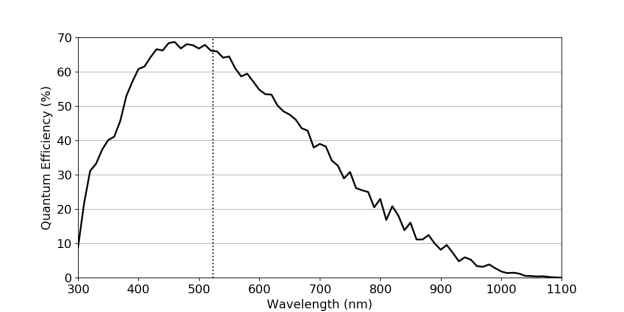

Blackfly S BFS-PGE-50S4M Spectral Response Curve

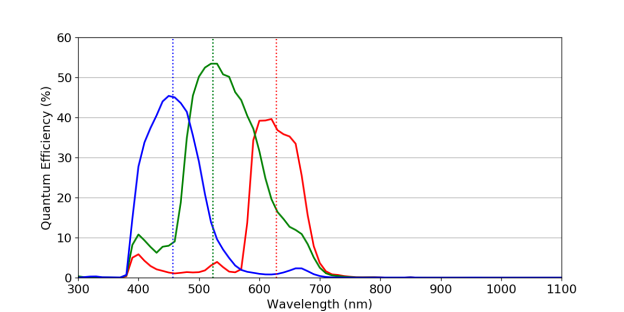

Blackfly S BFS-PGE-50S4C Spectral Response Curve
