EMVA 1288 Imaging Performance
Measurements are taken based on guidelines in the EMVA 1288 standard; the full definition can be found at EMVA.org. Camera settings are: maximum bit depth, 16-bit pixel format, and ISP disabled. The center wavelength is 525 nm unless otherwise noted. Results are captured at room temperature (20°C).
| Dragonfly S DR-U3-50Y2M | Dragonfly S DR-U3-50Y2C | |
|---|---|---|
| Resolution | 2592x1944 | 2592x1944 |
| Sensor | onsemi AR0521, CMOS, 1/2.5 | onsemi AR0521, CMOS, 1/2.5 |
| Pixel Size (µm) | 2.2 | 2.2 |
| Firmware Version | 2410.0.13.0 | 2410.0.13.0 |
| ADC Bit Depth | 12 | 12 |
| Quantum Efficiency Mono (% at 525 nm) | 79.55 | N/A |
| Quantum Efficiency Blue (% at 470 nm) | N/A | 65.13 |
| Quantum Efficiency Green (% at 525 nm) | N/A | 74.68 |
| Quantum Efficiency Red (% at 630 nm) | N/A | 47.92 |
| Temporal Dark Noise (Read Noise) (e-) | 2.97 | 3.16 |
| Temporal Dark Noise (Read Noise) (DN) | 18.74 | 19.45 |
| Signal to Noise Ratio Maximum (dB) | 40.15 | 40.29 |
| Signal to Noise Ratio Maximum (Bits) | 6.67 | 6.69 |
| Absolute Sensitivity Threshold (γ) | 4.47 | 5.02 |
| Absolute Sensitivity Threshold (e-) | 3.56 | 3.75 |
| Saturation Capacity (Well Depth) (e-) | 10343 | 10681 |
| Saturation Capacity (Well Depth) (γ) | 13001 | 14304 |
| Dynamic Range (dB) | 69.27 | 69.09 |
| Dynamic Range (Bits) | 11.50 | 11.48 |
| Gain (e-/ADU) | 0.16 | 0.17 |

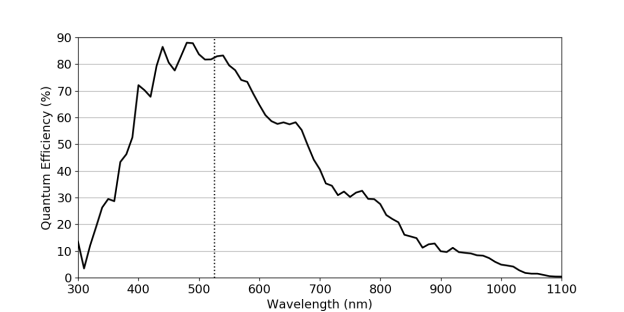

Dragonfly S DR-U3-50Y2M Spectral Response Curve

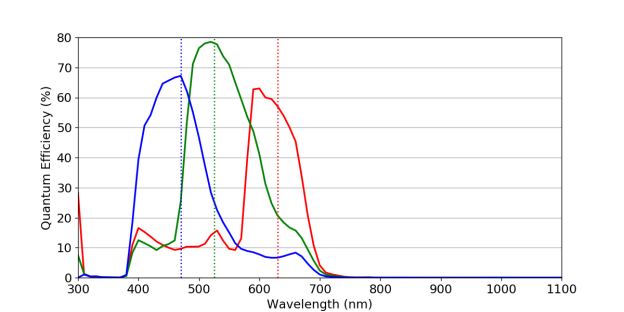

Dragonfly S DR-U3-50Y2C Spectral Response Curve
