EMVA 1288 Imaging Performance
Measurements are taken based on guidelines in the EMVA 1288 standard; the full definition can be found at EMVA.org. Camera settings are: maximum bit depth, 16-bit pixel format, and ISP disabled. The center wavelength is 525 nm unless otherwise noted. Results are captured at room temperature (20°C).
| Forge FG-P5G-51S4M | Forge FG-P5G-51S4C | |
|---|---|---|
| Resolution | 2448x2048 | 2448x2048 |
| Sensor | Sony IMX537, CMOS, 1/1.8 | Sony IMX537, CMOS, 1/1.8 |
| Pixel Size (µm) | 2.74 | 2.74 |
| Firmware Version | 2110.1.610.0 | 2110.1.610.0 |
| ADC Bit Depth | 12 | 12 |
| Quantum Efficiency Mono (% at 525 nm) | 67.54 | N/A |
| Quantum Efficiency Blue (% at 470 nm) | N/A | 46.61 |
| Quantum Efficiency Green (% at 525 nm) | N/A | 53.51 |
| Quantum Efficiency Red (% at 630 nm) | N/A | 34.00 |
| Temporal Dark Noise (Read Noise) (e-) | 2.49 | 2.53 |
| Temporal Dark Noise (Read Noise) (DN) | 16.99 | 17.54 |
| Signal to Noise Ratio Maximum (dB) | 39.82 | 39.76 |
| Signal to Noise Ratio Maximum (Bits) | 6.61 | 6.60 |
| Absolute Sensitivity Threshold (γ) | 4.57 | 5.85 |
| Absolute Sensitivity Threshold (e-) | 3.09 | 3.13 |
| Saturation Capacity (Well Depth) (e-) | 9588 | 9463 |
| Saturation Capacity (Well Depth) (γ) | 14197 | 17710 |
| Dynamic Range (dB) | 69.84 | 69.62 |
| Dynamic Range (Bits) | 11.60 | 11.56 |
| Gain (e-/ADU) | 0.15 | 0.15 |

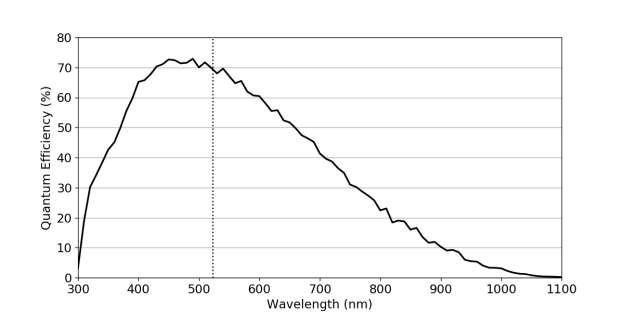

Forge FG-P5G-51S4M Spectral Response Curve

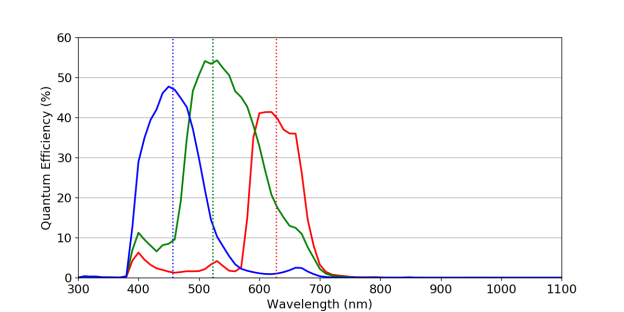

Forge FG-P5G-51S4C Spectral Response Curve
