Mounting your Forge Camera

Using the Case

The case is equipped with:

• Two (2) M3x0.5 mounting holes on the top of the case

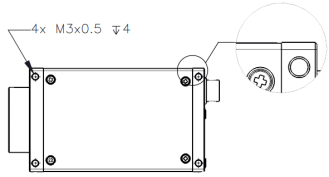

• Four (4) M3x0.5 mounting holes on the bottom of the case

Forge Camera Mounting Top	Forge Camera Mounting Bottom



Using the Mounting Bracket

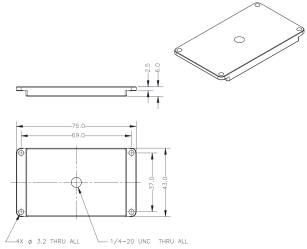

The tripod mounting bracket is equipped with four (4) 3.2 mounting holes.

Tripod Adapter Dimensions (ACC-01-0019)
