Mounting your Forge
Using the Case
The case is equipped with:
- Two (2) M3x0.5 mounting holes on the top of the case
- Four (4) M3x0.5 mounting holes on the bottom of the case
|
|
|
|
Forge Mounting Top |

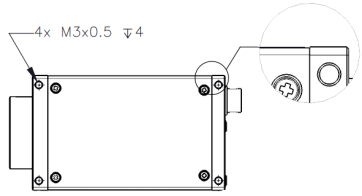

Forge Mounting Bottom |
Using the Mounting Bracket
The tripod mounting bracket is equipped with four (4) 3.2 mounting holes.

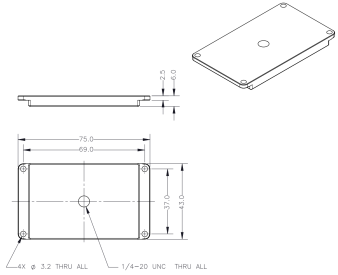

Tripod Adapter Dimensions (ACC-01-0019)
