Forge-IP Camera Dimensions

Download 3D CAD Models / Drawings from our website: CAD Models

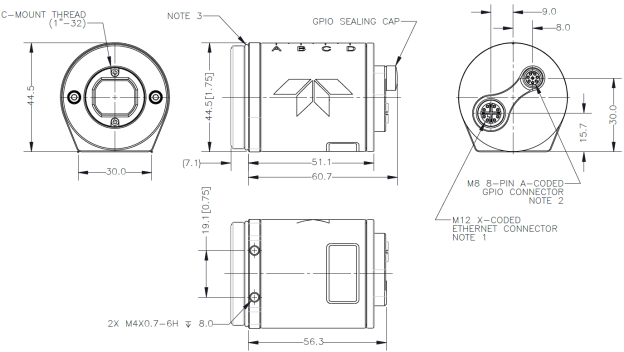

Forge-IP Camera Dimensional Drawing

Notes:

1. IP67-rated when appropriate mating connector is installed
2. IP67-rated when appropriate mating connector or plug (sealing cap) is installed
3. IP67-rated when matching lens cover is installed
4. Dimensions in square brackets [] are in inches, for reference only
