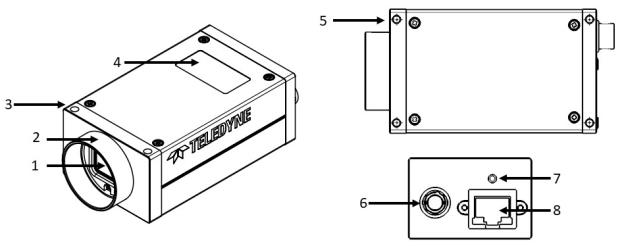

Forge Physical Description


  1. Glass/IR filter system

See Dust Protection and Infrared Cut-Off Filters

  1. Lens holder

See Lens Mounting

  1. M3X0.5 mounting holes (x2)

See Mounting your Forge

  1. Camera label

Contains camera information such as model name, serial number and required compliance.
  1. M3X0.5 mounting holes (x4)

See Mounting your Forge

  1. General purpose I/O connector

See General Purpose Input/Output (GPIO)

  1. Status LED

See Status Indicator LED

  1. Interface connector

See Interface Connector
