Interface for string properties. More...

#include <RegisterNode.h>

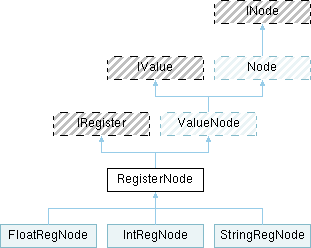

Inheritance diagram for RegisterNode:

Public Member Functions
	RegisterNode ()

	RegisterNode (std::shared_ptr< Node::NodeImpl > pRegister)

virtual	~RegisterNode ()

virtual void	Set (const uint8_t *pBuffer, int64_t Length, bool Verify=true)
	Set the register's contents.

virtual void	Get (uint8_t *pBuffer, int64_t Length, bool Verify=false, bool IgnoreCache=false)
	Fills a buffer with the register's contents.

virtual int64_t	GetLength ()
	Retrieves the Length of the register [Bytes].

virtual int64_t	GetAddress ()
	Retrieves the Address of the register.

virtual void	SetReference (INode *pBase)
	overload SetReference for Register

Public Member Functions inherited from ValueNode
	ValueNode ()
	Constructor.

	ValueNode (std::shared_ptr< Node::NodeImpl > pValue)
	constructor with GenICam IValue

	~ValueNode ()
	Destructor.

virtual INode *	GetNode ()

virtual GenICam::gcstring	ToString (bool Verify=false, bool IgnoreCache=false)
	Get content of the node as string.

virtual void	FromString (const GenICam::gcstring &ValueStr, bool Verify=true)
	Set content of the node as string.

virtual bool	IsValueCacheValid () const
	Checks if the value comes from cache or is requested from another node.

virtual void	SetReference (INode *pBase)
	overload SetReference for Value

Public Member Functions inherited from Node
	Node ()
	Constructor.

	Node (std::shared_ptr< Node::NodeImpl > pNodeHandle)
	Constructor.

	~Node ()
	Destructor.

virtual GenICam::gcstring	GetName (bool FullQualified=false) const
	Get node name.

virtual GenApi::ENameSpace	GetNameSpace () const
	Get name space.

virtual EVisibility	GetVisibility () const
	Get the recommended visibility of the node.

virtual void	InvalidateNode ()
	Indicates that the node's value may have changed.

virtual bool	IsCachable () const
	Is the node value cacheable.

virtual EYesNo	IsAccessModeCacheable () const
	True if the AccessMode can be cached.

virtual ECachingMode	GetCachingMode () const
	Get Caching Mode.

virtual int64_t	GetPollingTime () const
	recommended polling time (for not cacheable nodes)

virtual GenICam::gcstring	GetToolTip () const
	Get a short description of the node.

virtual GenICam::gcstring	GetDescription () const
	Get a long description of the node.

virtual GenICam::gcstring	GetDisplayName () const
	Get a name string for display.

virtual GenICam::gcstring	GetDeviceName () const
	Get a name of the device.

virtual void	GetChildren (GenApi::NodeList_t &Children, ELinkType LinkType=ctReadingChildren) const
	Get all nodes this node directly depends on.

virtual void	GetParents (GenApi::NodeList_t &Parents) const
	Gets all nodes this node is directly depending on.

virtual void	GetLockNodes (GenApi::NodeList_t &LockNodes) const
	Gets all nodes which can directly lock this node.

virtual CallbackHandleType	RegisterCallback (CNodeCallback *pCallback)
	Register change callback Takes ownership of the CNodeCallback object.

virtual bool	DeregisterCallback (CallbackHandleType hCallback)
	De register change callback Destroys CNodeCallback object.

virtual INodeMap *	GetNodeMap () const
	Retrieves the central node map.

virtual GenICam::gcstring	GetEventID () const
	Get the EventId of the node.

virtual bool	IsStreamable () const
	True if the node is streamable.

virtual void	GetPropertyNames (GenICam::gcstring_vector &PropertyNames) const
	Returns a list of the names all properties set during initialization.

virtual bool	GetProperty (const GenICam::gcstring &PropertyName, GenICam::gcstring &ValueStr, GenICam::gcstring &AttributeStr)
	Retrieves a property plus an additional attribute by name If a property has multiple values/attribute they come with Tabs as delimiters.

virtual void	ImposeAccessMode (EAccessMode ImposedAccessMode)
	Imposes an access mode to the natural access mode of the node.

virtual void	ImposeVisibility (EVisibility ImposedVisibility)
	Imposes a visibility to the natural visibility of the node.

virtual INode *	GetAlias () const
	Retrieves the a node which describes the same feature in a different way.

virtual INode *	GetCastAlias () const
	Retrieves the a node which describes the same feature so that it can be casted.

virtual GenICam::gcstring	GetDocuURL () const
	Gets a URL pointing to the documentation of that feature.

virtual bool	IsDeprecated () const
	True if the node should not be used any more.

virtual EInterfaceType	GetPrincipalInterfaceType () const
	Get the type of the main interface of a node.

virtual bool	IsFeature () const
	True if the node can be reached via category nodes from a category node named "Root".

void	SetNodeHandle (std::shared_ptr< Node::NodeImpl > pNodeHandle)
	Set Node handle.

std::shared_ptr< Node::NodeImpl >	GetNodeHandle () const
	Get Node handle.

virtual EAccessMode	GetAccessMode () const
	Base interface overrides.

virtual bool	IsSelector () const
	Selector interface overrides.

virtual void	GetSelectedFeatures (FeatureList_t &) const
	retrieve the group of selected features

virtual void	GetSelectingFeatures (FeatureList_t &) const
	retrieve the group of features selecting this node

virtual void	SetReference (INode *pBase)
	Reference interface overrides \ingroup Spinnaker_GenApi_PublicImpl.

virtual void	SetReference (ISelector *pBase)

void	SetNodeMap (INodeMap *pNodeMap)

virtual bool	operator== (int nullPtr) const

virtual bool	operator!= (int nullPtr) const

Additional Inherited Members
Protected Attributes inherited from Node
std::shared_ptr< Node::NodeImpl >	m_pNodeData

std::list< CallbackHandleType_t * >	m_Callbacks
	List of callbacks.

INodeMap *	m_pNodeMap

Detailed Description

Interface for string properties.

Constructor & Destructor Documentation

◆ RegisterNode() [1/2]

RegisterNode ( )

◆ RegisterNode() [2/2]

RegisterNode ( std::shared_ptr< Node::NodeImpl > pRegister )

◆ ~RegisterNode()

virtual ~RegisterNode ( )

virtual

Member Function Documentation

◆ Get()

virtual void Get	(	uint8_t *	pBuffer,
		int64_t	Length,
		bool	Verify = `false`,
		bool	IgnoreCache = `false`
	)

virtual

Fills a buffer with the register's contents.

Parameters

pBuffer	The buffer receiving the data to read
Length	The number of bytes to retrieve
Verify	Enables Range verification (default = false). The AccessMode is always checked
IgnoreCache	If true the value is read ignoring any caches (default = false)

Returns: The value read

◆ GetAddress()

virtual int64_t GetAddress ( )

virtual

Retrieves the Address of the register.

◆ GetLength()

virtual int64_t GetLength ( )

virtual

Retrieves the Length of the register [Bytes].

◆ Set()

virtual void Set	(	const uint8_t *	pBuffer,
		int64_t	Length,
		bool	Verify = `true`
	)

virtual

Set the register's contents.

Parameters

pBuffer	The buffer containing the data to set
Length	The number of bytes in pBuffer
Verify	Enables AccessMode and Range verification (default = true)

◆ SetReference()

virtual void SetReference ( INode * pBase )

virtual

overload SetReference for Register

Reimplemented from ValueNode.

Reimplemented in FloatRegNode, IntRegNode, and StringRegNode.

The documentation for this class was generated from the following file:

include/SpinGenApi/RegisterNode.h
